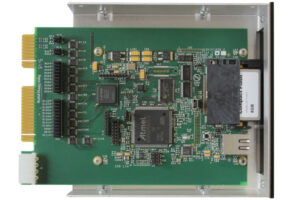

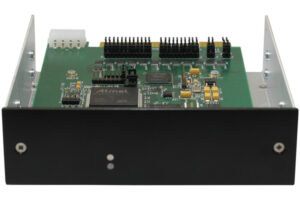

ESDIFlash

The ESDIFlash is an integrated solution that utilizes proven ESDI drive architecture and industry-standard Compact Flash Card technology, providing a solid state, drop-in replacement for electro-mechanical hard drives.

Enquire Datasheet

Part Number:

ES2R54E5D5SE

Features

Form Factor: 3.5″ form factor-102mm (4″) wide x 147mm (S.75″) long x 25mm (1″) high*

Compact Flash: Standard 3M header for Type 1 & 2 cards

Power: 5 Volts only@ 0.8 Watt (Typical)+ CF requirement

Power connector: Standard ESDI 34-way and 20-way edge Control and Data connectors

ESDI transfer rate: lOMbytes/second
USB and Serial Ports for microcode load and real time diagnostics Ethernet capability

Master Image (.img) /mirroring capability

Example fixed disk emulations: CDC 182MB Wren Hard Disk Drives Other drive models can be emulated
Support covers the following Operating Systems: Bull DPS6. Other Host systems can be supported

*Other form factor options are available

Host Systems Supported

Other Host systems can be supported.

Legacy Drives Supported

Form Factor: 3.5″ form factor-102mm (4″) wide x 147mm (S.75″) long x 25mm (1″) high*

Compact Flash: Standard 3M header for Type 1 & 2 cards

Power: 5 Volts only@ 0.8 Watt (Typical)+ CF requirement

Power connector: Standard ESDI 34-way and 20-way edge Control and Data connectors

ESDI transfer rate: lOMbytes/second
USB and Serial Ports for microcode load and real time diagnostics Ethernet capability

Master Image (.img) /mirroring capability

*Other form factor options are available

Other Host systems can be supported.
