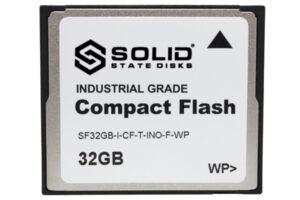

The CF2SCSI / SCSIFLASH CF-WP uses SLC flash based technology offering;
Write Protection which prevents written data on the storage device from being deleted and overwritten
Single Layer Cell (SLC)
Dynamic wear levelling Highest quality and reliability
High write endurance (BIT error rate 109, Cell write Endurance 100k, Data retention 10+ years)
Low disturb errors (Error detection & bad block management)
High speed
Performance
Data transfer mode PIO-4 mode or UDMA-4 mode (Default setting)
Data transfer rate
– 66.6MB/sec under UDMA-4 mode
– 16.6MB/sec under PIO-4 mode
Sequential read 40 MB/sec (Max. /with dual flash)
Sequential write 20 MB/sec (Max. / with dual flash)
Average access time 0.2ms (estimated)
Environmental specification
Operating temperature Standard grade -0 degree ~ +70 degree
Non-operating temperature Standard grade -50 degree ~ +95 degree
Humidity 10% ~ 95% non-condensing
Acoustic noise 0dB
Vibration 15G compliance to MIL-STD-810F
Shock 1,500G compliance to MIL-STD-810F
Altitude 70,000 feet
Power consumption
Power requirement +5V + 10% / +3.3V + 5%
Reading mode 1 Channel 78mA(Max.) / 2 Channel 124mA(Max.) UDMA4 Mode
Writing mode 1 Channel 67mA(Max.) / 2 Channel 121mA(Max.) UDMA4 Mode
Sleeping mode 1 Channel 1.2mA(Max.) / 2 Channel 1.8mA(Max.) UDMA4 Mode
Reliability
Wear-leveling Static wear-leveling algorithms
MTBF > 3,000,000 hours
ECC Enhanced management 4-bits per 512bytes block
Endurance > 2,000,000 cycles logically contributed by static wear-leveling and advanced bad sector management algorithms
Data reliability < 1 non-recoverable error in 1014 bits read
Data retention 10 years
H/W Protect: Option
MTBF: >3M HRS
