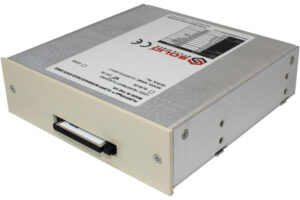

34 PIN Shugart Floppy-Drive 5.25″ Single CF

FLOPPYFLASH 5.25″ 34 Pin Shugart 34-pin Edge Removable Floppy Solid State Drive. Single Slot.

Part Number:

FF3S34E3R5S

Features

Size: 5.25″ Form factor. Size 5.8″ x 1.6″
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: ~ up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.
Media – Single and dual CompactFlash slot variants available on most drives offering HotBackup, FLASH2GUI™ & Restore Manager options.
Power connector: Standard 4-pin floppy power connector with Shugart floppy edge 34pin pin out
Transfer rate: 6.8Mbytes/second.
Media – single and dual CompactFlash variants available on most drives
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability is also available with optional ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation)

Specifications

Max Read Speed: up to 10 MB/sec

Max Write Speed: up to 10 MB/sec

H/W Protect: Option

MTBF: >3M HRS

Legacy Drives Supported

Model: Shugart SA200 8 inch Shugart edge connector interface
Capacity: 180K
Size: 5.25″
Support: Single Sided,Double Density

Model: Shugart SA210 8 inch Shugart edge connector interface
Capacity: 360K
Size: 5.25″
Support: Single Sided,Double Density

Model: Shugart SA215 8 inch Shugart edge connector interface
Capacity: 180K
Size: 5.25″
Support: Single Sided, Double Density

Model: Shugart SA300 8 inch Shugart edge connector interface
Capacity: 360K
Size: 3.5″
Support: Single Sided, Double Density

Model: Shugart SA390 8 inch Shugart edge connector interface
Capacity: 180K
Size: 5.25″
Support: Single Sided, Double Density

Model: Shugart SA400 8 inch Shugart edge connector interface
Capacity: 180K
Size: 5.25″
Support: Single Sided, Double Density

Model: Shugart SA400L 8 inch Shugart edge connector interface
Capacity: 180K
Size: 5.25″
Support: Single Sided, Double Density

Model: Shugart SA410 8 inch Shugart edge connector interface
Capacity: 360K
Size: 5.25″
Support: Single Sided, Double Density

Model: Shugart SA450 8 inch Shugart edge connector interface
Capacity: 360K
Size: 5.25″
Support: Double Sided, Double Density

Model: Shugart SA455 8 inch Shugart edge connector interface
Capacity: 360K
Size: 5.25″
Support: Double Sided, Double Density

Model: Shugart SA460 8 inch Shugart edge connector interface
Capacity: 720K
Size: 5.25″
Support: Double Sided, Quad Density

Model: Shugart SA465 8 inch Shugart edge connector interface
Capacity: 720K
Size: 5.25″
Support: Double Sided, Quad Density

Model: Shugart SA475 8 inch Shugart edge connector interface
Capacity: 1.2M
Size: 5.25″
Support: Double Sided, High Density

Model: Shugart SA551 8 inch Shugart edge connector interface
Capacity: 360K
Size: 5.25″
Support: Double Sided, Double Density

Model: Shugart SA561 8 inch Shugart edge connector interface
Capacity: 720K
Size: 5.25″
Support: Double Sided, Quad Density

Model: Shugart SA800-1 8 inch Shugart edge connector interface
Capacity: 800K
Size: 8.0″
Support: Single Sided, Double Density

Model: Shugart SA800-1R 8 inch Shugart edge connector interface
Capacity: 800K
Size: 8.0″
Support: Single Sided, Double Density

Model: Shugart SA800-2 8 inch Shugart edge connector interface
Capacity: 800K
Size: 8.0″
Support: Single Sided, Double Density

Model: Shugart SA800-2R 8 inch Shugart edge connector interface
Capacity: 800K
Size: 8.0″
Support: Single Sided, Double Density
