Size: 3.5″ Form factor – 3.75″x 5.5″.
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.

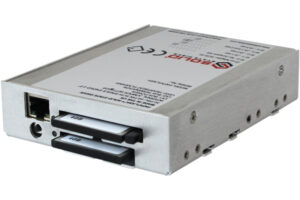

Media – Dual CompactFlash slot available offering HotBackup, FLASH2GUI™ & Restore Manager options.
Power connector: Standard 3.5 PATA Hard Disk drive. 40-pin PATA power Connector.

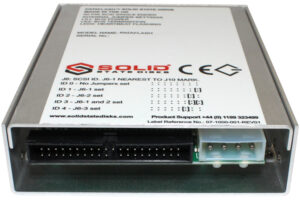

Standard 5V 4-pin Power key – “Reverse” power option refers to Molex power keyed on right side when viewing rear of drive.
PATA transfer rate: 6.8Mbytes/second.
Media – Dual CompactFlash variant
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability with ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation)
Max Read Speed: up to 10 MB/sec
Max Write Speed: up to 10 MB/sec
MTBF: >3M HRS
Solid State replacement for legacy 2.5″ and 3.5″ IDE/PATA drives
PATAFlash 2.5″ and 3.5″ IDE/PATA drive Replacements. Legacy Drive Support List
We are able to use our on-board tools to investigate and provide custom firmware solutions for problematic legacy systems. No additional software or register changes are required to the legacy host. Custom capacities available for systems that require exact capacity value. Custom sector sizes available.
If you can’t find your part number please contact us
