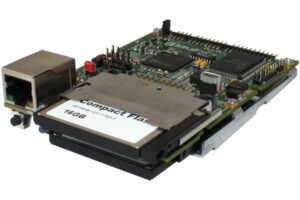

50-pin SCSI Fixed-Disk-Drive Dual CF Ethernet SF250 RAILMOUNT

SCSIFLASH250 2.5″ 50-pin SCSI Solid State Drive Dual CF Slot with Side Rail Mounting. Ethernet enabled

Part Number:

SF2S502D2SDE

Features

Size: 2.5″ Form factor – 2.8″x3.9″.
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.
Media – Single and dual CompactFlash slot variants available on most drives offering HotBackup, FLASH2GUI™ & Restore Manager options.
Power connector: Standard 2.5 SCSI Hard Disk drive type SCSI-1 and 2 Compatible. 50-pin SCSI DIL 0.1″ Connector.
SCSI transfer rate: 6.8Mbytes/second.
Media – single and dual CompactFlash variants available on most drives
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability is also available with optional ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation)

Specifications

Max Read Speed: up to 10 MB/sec

Max Write Speed: up to 10 MB/sec

H/W Protect: Option

MTBF: >3M HRS

Legacy Drives Supported

2.5″ SCSIFlash SCSI SSD Disk Drive Replacements. Legacy Drive Support List

We are able to use our on-board SCSI tools to investigate and provide custom firmware solutions for problematic legacy SCSI systems. No additional software or register changes are required to the legacy host. Custom capacities available for systems that require exact capacity value. Custom sector sizes available.

If you can’t find your part number please contact us

SCSIFlash SF250 2.5″ SCSI 50-Pin SSD replaces

Adtron SSD – SCSI Solid State Disk Drive Replacement

Conner Disk Drive SSD – SCSI Solid State Disk Drive Replacement

CTD8000H/R-S
CTD8000HS
CTD4004HS

Fujitsu Disk Drive SSD – SCSI Solid State Disk Drive Replacement

Hitachi Disk Drive SSD – SCSI Solid State Disk Drive Replacement

GD 2000
GF 2000

HP Disk Drive SSD – SCSI Solid State Disk Drive Replacement

C1113-69014

IBM Disk Drive SSD – SCSI Solid State Disk Drive Replacement

DPRS-20810
DPRS-21215
H2172-S2

M-Systems SSD – SCSI Solid State Disk Drive Replacement

memtech

- SC2500
- SC2500 Stinger

Panasonic

- - - SW-9572-C
    - SW-9573-C
    - SW-9574-C
    - SW-9576-C
    - SW-9571-C
    - LF-D211
    - LF-D311
    - LF-D291
    - LF-D291BK
    - LF-D1091N
    - LF-D201

Pinnacle Disk Drive SSD – SCSI Solid State Disk Drive Replacement

- - - - Pinnacle Micro

        Pinnacle Micro Sierra

        Pinnacle Micro Vertex

        Pinnacle Micro Apex

Quantum Disk Drive SSD – SCSI Solid State Disk Drive Replacement

- - - - CD72LWH-SB

        CDJ2LWH JF110

        STD2401LW

        GoDrive 120S

        Daytona 256S

Toshiba Disk Drive SSD – SCSI Solid State Disk Drive Replacement

- - - - Toshiba MK156FB

        Toshiba MK1842FBC

        Toshiba MK1924FBV

        Toshiba MK1924FBV

        Toshiba MK2428FB
