A pdf revision of our Teac FC1 Application Note is available to download.
Size: 3.5″ Form factor – 3.75″x 5.5″.
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.
Media – Single and dual CompactFlash slot variants available on most drives offering HotBackup, FLASH2GUI™ & Restore Manager options.
Power connector: Standard 3.5 SCSI Hard Disk drive type SCSI-1 and 2 Compatible. 50-pin SCSI DIL 0.1″ Connector.

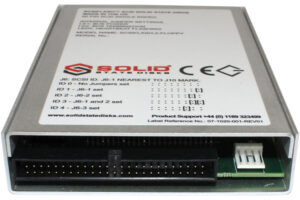

Standard 5V 4-pin Floppy Power key – “Reverse” power option refers to Molex power keyed on right side when viewing rear of drive.
SCSI transfer rate: 6.8Mbytes/second.
Media – single and dual CompactFlash variants available on most drives
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability is also available with optional ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation).
Max Read Speed: up to 10 MB/sec
Max Write Speed: up to 10 MB/sec
H/W Protect: Option
MTBF: >3M HRS
Solid State replacement for legacy SCSI Teac FC-1 Floppy drives
SCSIFlash SCSI SSD Teac FC-1 Floppy drive Replacements. Legacy Drive Support List
We are able to use our on-board SCSI tools to investigate and provide custom firmware solutions for problematic legacy SCSI systems. No additional software or register changes are required to the legacy host. Custom capacities available for systems that require exact capacity value. Custom sector sizes available.
If you can’t find your part number please contact us
- Teac FC-1
- Teac floppy Solid State replacement
- Teac floppy
- SCSI Floppy
- FC1FD-235HF-100 FC-1
- FD-235HF-230 FC-1
- FD-235HF-630 FC-1
- FD-235HF-1229 FC-1
- FD-235HF-1240 FC-1
- FD-235HF-1291 FC-1
- FD-235HF-2217 FC-1
- FD-235HF-2235 FC-1
- FD-235HF-3100 FC-1
- FD-235HF-3112 FC-1
- FD-235HF-3201 FC-1
- FD-235HF-3217 FC-1
- FD-235HF-3229 FC-1
- FD-235HF-3240
- FD-235HF-3291 FC-1
- FD-235HF-3405 FC-1
- FD-235HF-4112 FC-1
- FD-235HF-4201 FC-1
- FD-235HF-4217 FC-1
- FD-235HF-4229 FC-1
- FD-235HF-4240 FC-1
- FD-235HF-4291 FC-1
- FD-235HF-4405 FC-1
- FD-235HF-4429 FC-1
- FD-235HF-4440 FC-1
- FD-235HF-4491 FC-1
- FD-235HF-4473 FC-1
- FD-235HF-5229 FC-1
- FD-235HF-5240 FC-1
- FD-235HF-5291 FC-1
- FD-235HF-5429 FC-1
- FD-235HF-5440 FC-1
- FD-235HF-5491 FC-1
- FD-235HF-5636 FC-1
- FD-235HF-6229 FC-1
- FD-235HF-6240 FC-1
- FD-235HF-6291 FC-1
- FD-235HF-6328 FC-1
- FD-235HF-6329 FC-1
- FD-235HF-6340 FC-1
- FD-235HF-6391 FC-1
- FD-235HF-6429 FC-1
- FD-235HF-6440 FC-1
- FD-235HF-6491 FC-1
- FD-235HF-6529 FC-1
- FD-235HF-6540 FC-1
- FD-235HF-6591 FC-1
- FD-235HF-6573 FC-1
- FD-235HF-6591 FC-1
- FD-235HF-7229 FC-1
- FD-235HF-7240 FC-1
- FD-235HF-7278 FC-1
- FD-235HF-7291 FC-1
- FD-235HF-7325 FC-1
- FD-235HF-7329 FC-1
- FD-235HF-7339 FC-1
- FD-235HF-7340 FC-1
- FD-235HF-7373 FC-1
- FD-235HF-7383 FC-1
- FD-235HF-7391 FC-1
- FD-235HF-7429 FC-1
- FD-235HF-7440 FC-1
- FD-235HF-7491 FC-1
- FD-235HF-7527 FC-1
- FD-235HF-7529 FC-1
- FD-235HF-7540 FC-1
- FD-235HF-7591 FC-1
- FD-235HF-8229 FC-1
- FD-235HF-8240 FC-1
- FD-235HF-8291 FC-1
- FD-235HF-8384 FC-1
- FD-235HF-8385 FC-1
- FD-235HF-8429 FC-1
- FD-235HF-8440 FC-1
- FD-235HF-8491 FC-1
- FD-235HF-A114 FC-1
- FD-235HF-A229 FC-1
- FD-235HF-A240 FC-1
- FD-235HF-A291 FC-1
- FD-235HF-A429 FC-1
- FD-235HF-A440 FC-1
- FD-235HF-A491 FC-1
- FD-235HF-A529 FC-1
- FD-235HF-A540 FC-1
- FD-235HF-A591 FC-1
- FD-235HF-B229 FC-1
- FD-235HF-B240 FC-1
- FD-235HF-B291 FC-1
- FD-235HF-C229 FC-1
- FD-235HF-C240 FC-1
- FD-235HF-C291 FC-1
- FD-235HF-C429 FC-1
- FD-235HF-C440 FC-1
- FD-235HF-C491 FC-1
- FD-235HF-C527 FC-1
- FD-235HF-C529 FC-1
- FD-235HF-C540 FC-1
- FD-235HF-C591 FC-1
- FD-235HF-C628 FC-1
- FD-235HF-C629 FC-1
- FD-235HF-C640 FC-1
- FD-235HF-C691 FC-1
- FD-235HF-C700 FC-1
- FD-235HF-C829 FC-1
- FD-235HF-C840 FC-1
- FD-235HF-C891 FC-1
- FD-235HF-C929 FC-1
- FD-235HF-C940 FC-1
- FD-235HF-C958 FC-1
- FD-235HF-C991 FC-1
- FD-235HG-5494
- FD-235HG-6304
- FD-235HG-6325
- FD-235HG-6351
- FD- FD-235HS-309 FC-1
- FD-235HS-701 FC-1
- FD-235HS-711 FC-1
- FD-235HS-715 FC-1
- FD-235HS-806 FC-1
- FD-235HS-911 FC-1
- FD-235HS-915 FC-1
- FD-235HS-1011 FC-1
- FD-235HS-1101 FC-1
- FD-235HS-1111 FC-1
- FD-235HS-1112 FC-1
- FD-235HS-1125 FC-1
This is also AMAT P5000 FDD FLOPPY DRIVE SUBSTITUTE for 0190-70110. 3.5″ SCSI Floppy. The FDD has an FC-1 SCSI Controller PCB. Also replaces
- 0650-00251
- 0010-9015
- 0015-0019
- 0190-0110
- 0660-1046
- 0660-1083
Ask a question about

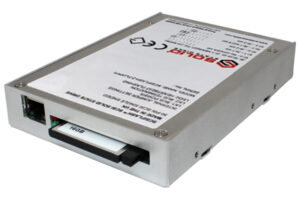

50-pin SCSI 3.5″ 4-pin IDC Power Floppy-Drive Single Slot Ethernet
