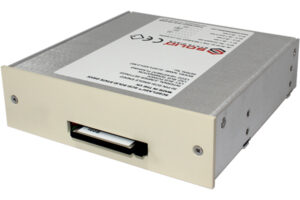

Size: 5.25″ Form factor. Size 5.8″ x 1.6″
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: ~ up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.
Media – Single and dual CompactFlash slot variants available on most drives offering HotBackup, FLASH2GUI™ & Restore Manager options.
Power connector: Standard 3.5 SCSI floppy drive type SCSI-1 and 2 Compatible. 50 pin SCSI DIL 0.1″ Connector.

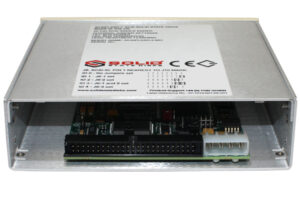

Molex Power key positioning – “Reverse” power option refers to Molex power keyed on right side when viewing rear of drive.
SCSI transfer rate: 6.8Mbytes/second.
Media – single and dual CompactFlash variants available on most drives
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability is also available with optional ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation)
Max Read Speed: up to 10 MB/sec
Max Write Speed: up to 10 MB/sec
H/W Protect: Option
MTBF: >3M HRS
