50 PIN SCSI Removable-Tape 3.5″ Single CF

SCSIFLASH2R 3.5″ 50 Pin SCSI Solid State Drive. Removable Tape. Single Slot. Reverse SCSI Power Connector

Part Number:

SF2R503T3S

Features

Size: 3.5″ SCSI tape form factor – 102mm (4″) wide x 147mm (5.75″) long x
25mm (1″) high (Note: There is an 8.5mm CF projection from the front panel)
Compact Flash: Standard 3M header for Type 1 & 2 cards.
CF Capacities Supported: ~ up to 256GB (MLC) for removable drive and non-mission critical applications and up to 64GB (SLC) for fixed disk heavy read/write mission critical applications.
Power: 5 Volts only @ 0.8 Watt (Typical) + CF requirement.
Media – Single and dual CompactFlash slot variants available on most drives offering HotBackup, FLASH2GUI™ & Restore Manager options.

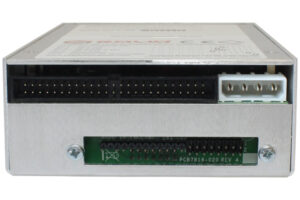

Power connector: Standard 3.5 SCSI tape disk drive type SCSI-1 and 2 Compatible. 50 pin SCSI DIL 0.1″ Connector.
Molex Power key positioning – “Reverse” power option only available in this drive variant. “Reverse” refers to Molex power keyed on right side when viewing rear of drive.
SCSI transfer rate: 6.8Mbytes/second.
Media – single and dual CompactFlash variants available on most drives
Comport for microcode load and real time diagnostics. Statutory and Regulatory standard compliance RoHS (aside from legacy devices) + FCC + CE
Networking – centralised backup and restore capability is also available with optional ethernet support. Industrial grade CompactFlash cards are used to write primary data storage. Importantly there are no requirements for any changes to be made in the legacy host software.
FLASH2GUI™ and Recovery Manager software options – remote data management software (management of drive data through LAN/WAN). FLASH2GUI™ and Recovery Manager are supported on both single and dual CF media drive variants. Only available with network /ethernet drive variant
HotBackup option – hardware based. Only available on dual CF media drive variants using on physical push buttons. Requires physical access to the device in order to make use of the backup capability through CF flash media. (physical CF media rotation)

Specifications

Max Read Speed: up to 10 MB/sec

Max Write Speed: up to 10 MB/sec

H/W Protect: Option

MTBF: >3M HRS

Legacy Drives Supported

SCSIFlash SCSI SSD Tape Drive Replacements. Legacy Drive Support List

We are able to use our on-board SCSI tools to investigate and provide custom firmware solutions for problematic legacy SCSI systems. No additional software or register changes are required to the legacy host. Custom capacities available for systems that require exact capacity value. Custom sector sizes available.

If you can’t find your part number please contact us

DEC Tape Drive SSD – Solid State Tape Drive Replacements

Pertec Tape Drive SSD – Solid State Tape Drive Replacements

Pertec
Kennedy
9-track
Qualstar

QIC-02 Tape Drive SSD – Solid State Tape Drive Replacements

QIC Tape Drive SSD – Solid State Tape Drive Replacements

Sony AIT Tape Drive SSD – Solid State Tape Drive Replacements

Sony DAT Tape Drive SSD – Solid State Tape Drive Replacements

Tape Drive SSD – Solid State Tape Drive Replacements

Travan Tape Drive SSD – Solid State Tape Drive Replacements

HP C4386B
HP C4386B COLORADO
HP C4394-66502
HP C4394-66502 TRAVAN
