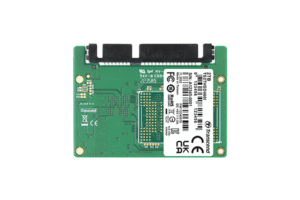

HSD460I Half-Slim SSD 256GB

256GB, Half-Slim SSD, SATA3, 3D TLC BiCS5, DRAM-less, PE: 3K, wide temp

Transcend’s HSD460I half-slim SSD is built with 112 layers of 3D NAND flash and the SATA III 6Gb/s interface, delivering never-before-seen transfer speeds. Applied with the Corner Bond technology and anti-sulfur resistor, the HSD460I is fortified to withstand demanding industrial applications. Following JEDEC’s MO-297 standard, the HSD460I is fully tested in-house and is able to operate in wide operating temperatures ranging from -40℃ to 85℃, ideal for read-heavy applications and space-limited mobile devices such as industrial control systems, medical equipment, mobile devices, and POS terminals.

Enquire Datasheet

Part Number:

TS256GHSD460I

Features

Firmware Features

Dynamic thermal throttling
Built-in LDPC ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Static Data Refresh
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
TRIM command for better performance
NCQ command for better performance
Full drive encryption with Advanced Encryption Standard (AES) (optional)
Power-saving DevSleep (Device Sleep) mode (optional)

Hardware Features

Compliant with RoHS 2.0 standards
Compliant with JEDEC MO-297
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Key components fortified by default with Corner Bond technology
Anti-sulfur technology implemented to prevent sulfurization in the environment
Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
Promised operational reliability in a wide temperature range (from -40°C to 85°C)

Specifications

Max Read Speed: Up to 560 MB/s

Max Write Speed: Up to 500 MB/s

Dimensions: 54 mm x 39.8 mm x 4 mm (2.13" x 1.57" x 0.15")

Storage Temperature: -55°C (-67°F) to 85°C (185°F)

Interface: SATA III 6Gb/s
