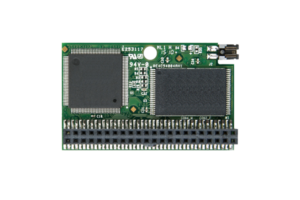

IDEDOM SSD TS1GPTM820 1GB

1GB IDE FLASH MODULE, SLC (Horizontal)

Transcend’s 44-pin PATA PTM820 Flash Module can be inserted directly to the PATA (IDE) interface of a motherboard to replace conventional 2.5″ hard disk drives. Ideal for use as bootable drives, the 44-pin PATA PTM820 Flash Module is an easy solution for integrating SSD storage technology into laptop-based legacy systems.

Enquire Datasheet

Part Number:

TS1GPTM820

Features

RoHS compliant
Support Security command
Support S.M.A.R.T (Self-dfined)
Fully compatible with devices and OS that support the IDE standard (pitch = 2.00mm)
Built-in ECC function assures high reliability of data transfer
Supports up to Ultra DMA Mode 4
Supports PIO Mode 6
SLC NAND Flash

Specifications

Max Read Speed: 21 MB/s

Max Write Speed: 14 MB/s

Max Power Consumption: 0.45 watt(s)

ATA Security: YES

Flash P/E Cycle Limit: 50k
