IDEDOM SSD TS512MPTM520 512GB

512MB 40P IDE FLASH MODULE, SLC (Vertical)

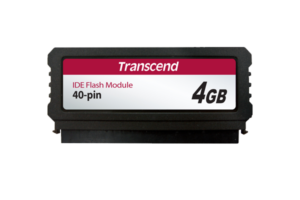

Transcend’s 40-pin PATA PTM520 Flash Modules can be inserted directly to a system motherboard via any PATA (IDE) interface to replace conventional 3.5″ hard disk drives. Ideal
for use as bootable drives, the 40-pin PATA PTM520 Flash Module is an easy solution for integrating SSD storage technology into legacy PC-based systems.

Enquire Datasheet

Part Number:

TS512MPTM520

Features

Hardware Features

Compliant with RoHS 2.0 standards
SLC NAND flash

Firmware Features

Security Command
Enhanced S.M.A.R.T. function for durability
Built-in ECC (Error Correction Code) functionality
Based on PIO Mode 0 to 4
Based on Ultra DMA Mode 0 to 5

Specifications

Max Read Speed: 39 MB/s

Max Write Speed: 42 MB/s

Max Power Consumption: 0.9 watt(s)

ATA Security: YES

Flash P/E Cycle Limit: 50k
